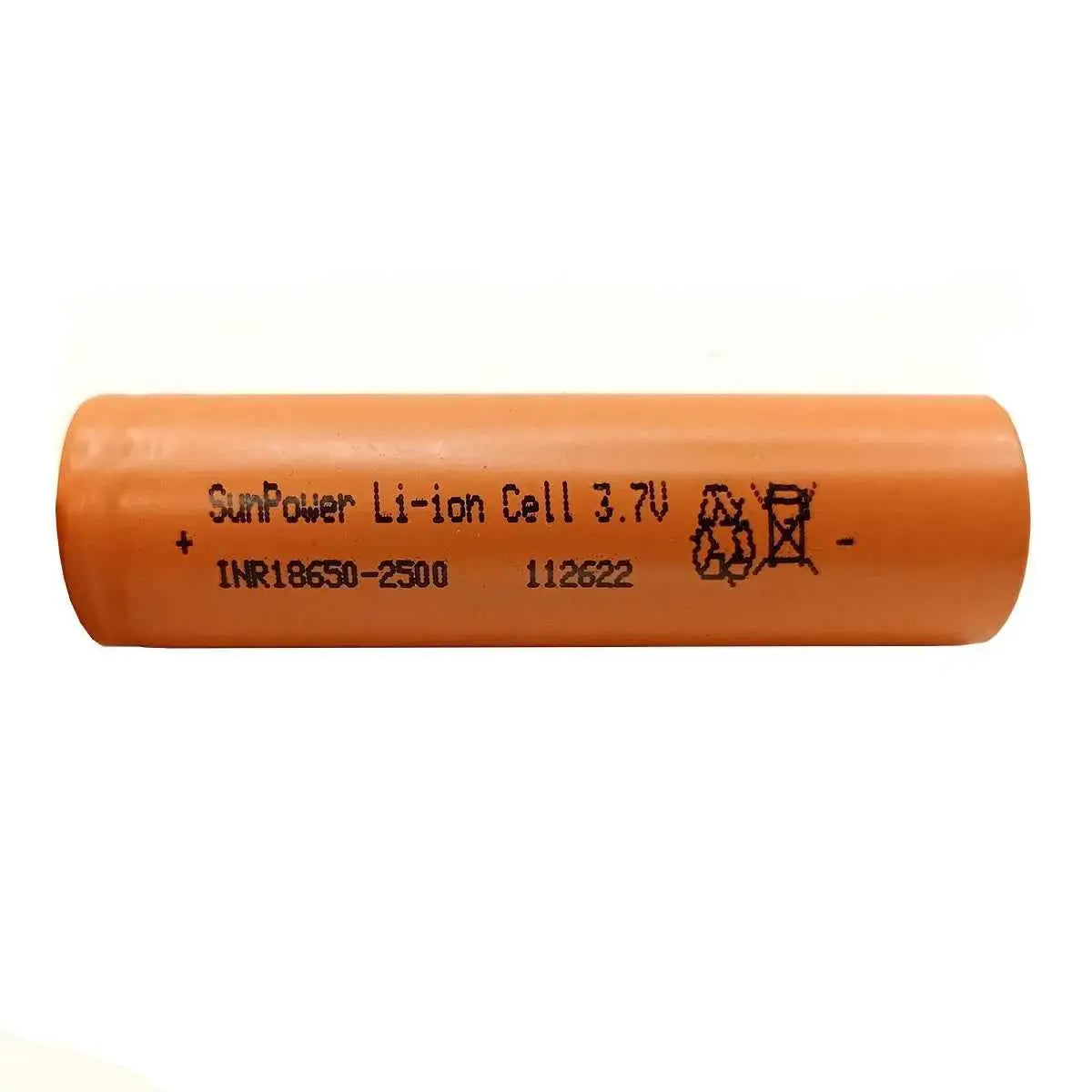

18650 2500mAh 3.7V 10C Lithium-Ion Battery Cell

18650 2500mAh 3.7V 10C Lithium-Ion Battery Cell

Choose a rechargeable cylindrical cell for a compatible power-storage or electronics build. This flat-top 18650 lithium-ion battery is listed at 2500mAh capacity and 3.7V nominal voltage, with a 10C discharge rating. Check the electrical limits and physical fit against your device or pack design before use.

Specifications

• Cell format: 18650 cylindrical lithium-ion cell
• Rated capacity: 2500mAh
• Nominal voltage: 3.7V
• Listed charge voltage: 4.2V
• Discharge rating: 10C
• Listed discharge current: 20A; maximum continuous discharge current listed as 25A
• Listed charge current: 1A; maximum continuous charging current listed as 2A
• Approximate cell size: 18mm × 65mm
• Approximate cell weight: 46g
• Top style: Flat top
• Cycle-life claim in original listing: 1400–1600 cycles; test conditions were not specified

Planning a battery pack

The original listing describes use in power storage and in multi-cell series or parallel configurations. If you are building a pack, check that the cells, charger and battery-management protection suit the intended voltage and current. Actual runtime, cycle life and discharge capability depend on operating conditions; confirm critical limits with the cell's manufacturer datasheet before designing a high-current pack.
