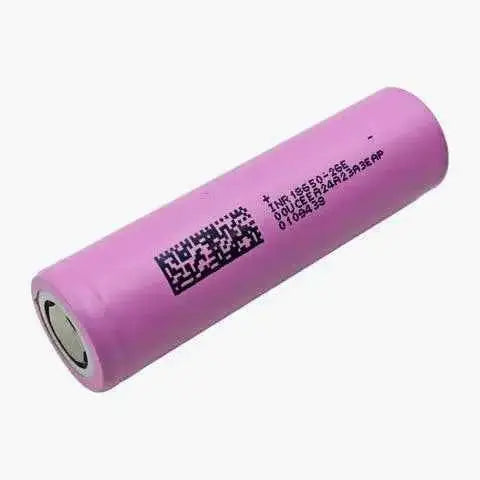

DMEGC 18650 2600mAh 3.7V Lithium-Ion Battery Cell

DMEGC 18650 2600mAh 3.7V Lithium-Ion Battery Cell

The DMEGC 18650 is a rechargeable lithium-ion cell for compatible electronics and battery-pack projects. The existing specification lists 2600mAh nominal capacity, 3.7V nominal voltage and a flat-top 18650 format. Check your device's dimensions, current draw and protection requirements before use.

Key specifications

• Brand / listed model: DMEGC / INR18650-2600mAh
• Type: Cylindrical lithium-ion (NMC) 18650 cell, flat top
• Nominal / minimum capacity: 2600mAh / 2550mAh
• Nominal voltage / energy: 3.7V / 9.62Wh
• Listed charging voltage: 4.20 ± 0.05V
• Standard / maximum charging current: 1.3A / 2.6A
• Standard discharge current: 1.3A
• Listed continuous discharge range: 2.6A–5.2A; confirm the applicable limit with the cell datasheet
• Discharge cut-off: 2.75V
• Internal resistance: ≤ 60mΩ
• Listed cycle life: ≥ 800 cycles at 80% capacity retention; test conditions were not provided
• Listed self-discharge: ≤ 3% per month
• Charging / discharging temperature: 0°C to 45°C / -20°C to 60°C
• Storage temperature: -20°C to 25°C
• Approximate dimensions / cell weight: 18.3 ± 0.2mm diameter × 65.0 ± 0.2mm height / 45g
• Protection: Unprotected cell; use suitable battery-management protection
• Country of origin in previous listing: China

Planning your build

The previous description mentions energy storage, solar lighting, robotics, portable electronics and electric mobility as possible applications. Suitability depends on your pack design and power requirements. Use a charger and BMS suitable for this lithium-ion cell, and confirm critical ratings and any certifications with the manufacturer's documentation before assembly. The earlier claim of built-in overcharge protection conflicts with the listed unprotected cell specification and has not been repeated here.
